Where is the 12V battery of the AVATR 07 ASE EV located?
In the front compartment
Under the passenger seat
On the left side of the rear trunk
On the right side of the rear trunk
In the low-voltage power system of AVATR, if the Intelligent Battery Sensor (IBS) malfunctions, what impact will it have on low-voltage charging?
No impact
Charging switches to Intelligent Charge mode
Charging switches to Redundant Charge mode
Unable to charge the low-voltage battery
What are the main differences between the BDC 1.0 and BDC 2.0 electronic architectures adopted by AVATR?
BDC 1.0 has six domains, while BDC 2.0 only has five domains.
The main control modules of each domain differ between BDC 1.0 and BDC 2.0.
The installation positions of the main control modules for each domain are different in BDC 1.0 and BDC 2.0.
BDC 1.0 is equipped with an independent gateway, whereas BDC 2.0 integrates the gateway into the BDC.

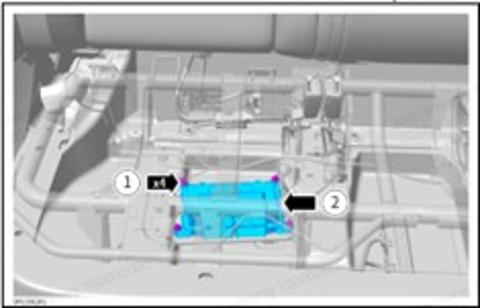

As shown in the figure, where is the VCU of the AVATR 07 ASE EV located on the vehicle?
Under the center console
Under the rear seat cushion
Inside the trim panel on the right side of the rear trunk
Behind the front passenger baffle

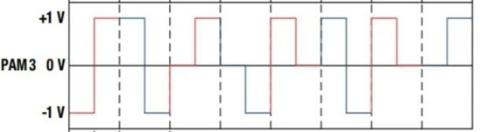

What type of in-vehicle network is shown in the figure?
CAN
CANFD
LIN
Ethernet

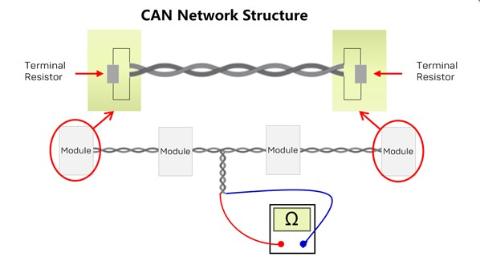

When measuring a vehicle CAN or CAN FD network as shown in the figure, what should the correct terminal resistance value be?
60Ω
90Ω
120Ω
240Ω

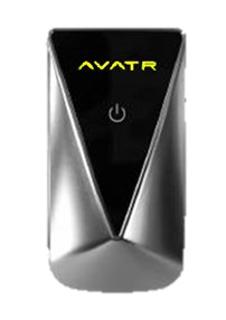

What status is the FOB (physical Bluetooth key) in as shown in the figure?
It has been successfully connected to the BDC.
It is in transport mode.
It is performing an OTA upgrade.
It is in a faulty status.

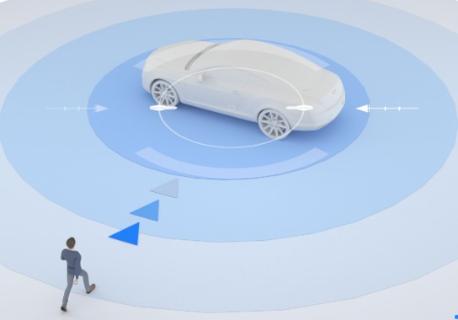

Which of the following is NOT an walk-away unlock recognition area for the vehicle access system of the AVATR 07 ASE EV?
Sensing Area
Welcome Area
Entry Area
Unlocking Area

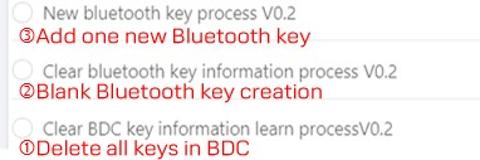

What operation should be performed on the Bluetooth key before replacing the BDC?
Process ② + ③
Process ③
Process ② + ① + ③
Process ① + ③
How many-way electric adjustable seats does the AVATR 07 ASE EV offer?
12-way
14-way
16-way
18-way
