According to AVATR's High-Voltage System Safety Precautions, at what voltage levels are direct current and alternating current considered extremely dangerous?
DC voltage ≥ 300V, AC voltage ≥ 220V
DC voltage ≥ 100V, AC voltage ≥ 60V
DC voltage ≥ 60V, AC voltage ≥ 25V
DC voltage ≥ 48V, AC voltage ≥ 12V

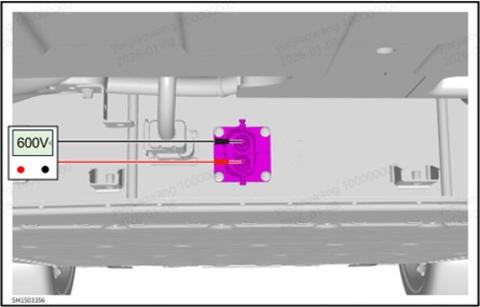

As shown in the figure, after measuring that the DC voltage of the HV plug is higher than the standard value, what operation should we perform immediately?
Place a “Red Live Warning Sign”
Place a “White Live Warning Sign”
Seek technical support
Set up a safety barrier
AVATR 07 G REEV is equipped with a 6-in-1 rear drive assembly. Which of the following is NOT one of its functions?
DC/DC convertor
On-board Charger (OBC)
High-voltage distribution
Motor controller
Compare AVATR 11 ASE EV and AVATR 07 ASE EV. What is the biggest difference in the component structure of their high-voltage systems?
The installation positions of their high-voltage batteries are different.
AVATR 11 uses an independent PDU, while the PDU of AVATR 07 is integrated into the rear drive assembly.
AVATR 11 uses a 7-in-1 rear drive assembly, while AVATR 07 uses a 3-in-1 rear drive assembly.
AVATR 11 is not equipped with an Air Conditioning Compressor (ACP).

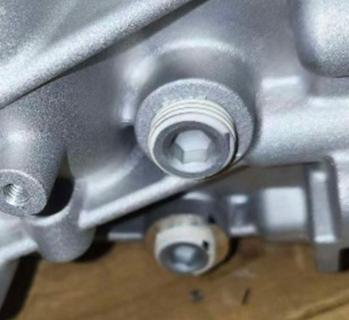

When replacing the motor lubricating oil of the AVATR, its drain/fill plugs can be reused. However, under what circumstances do you need to replace the plug?
The plug is dirty
the exposed threads are less than 1.5 threads
the exposed threads are less than 2.5 threads
the exposed threads are less than 3.5 threads
What test is being performed as shown in the figure below?
Insulation Resistance Test
Insulation Test
Equipotential Detection
Airtightness Test

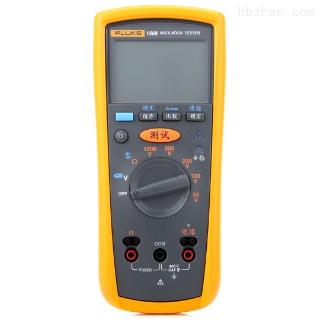

When performing an insulation test on the high-voltage components of the AVATR 07 ASE EV, what voltage do we typically set the insulation tester to?
100V
250V
500V
1000V
In the High Voltage Interlock (HVIL) system used in the AVATR 07 ASE EV, which module is responsible for monitoring the HV Battery connector?
Battery Control Unit (BCU)
Battery Distribution Unit (BDU)
Vehicle Control Unit (VCU)
Body Domain Controller (BDC)
What is the connector shown in the red box on the high-voltage battery used in the AVATR 07 ASE EV?
Fast charging high-voltage connector
Neutral line connector
Rear drive high-voltage connector
Front drive high-voltage connector
What high-voltage component of the AVATR 07 ASE EV is shown in the figure below?
A. Rear drive motor assembly
B. AC/DC charging port
C. Boost Inductor
D. High-voltage battery
